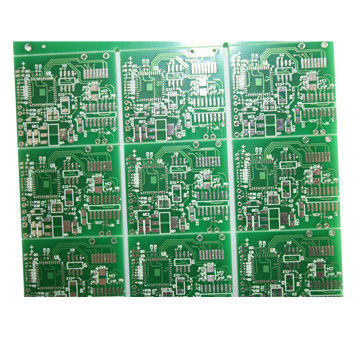

4 Layer Rigid PCB Board Manufacturing
1.4 layer Rigid PCB Board Layout/Fabricate
2.UL, SGS, Rohs Certificate
3.Competitive Price, High Quality, Fast delivery
4.OEM Service are welcome, E-test, Testing Service
your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
1.Product process capability:
|
1
|
Layer
|
Single Sided, 2-30 Layer
|
|
2
|
Board Thickness
|
0.21mm~7.00mm
|
|
3
|
Board Material
|
FR-4, CEM-1, CEM-3, High TG, FR4 halogen Free, Rogers, Aluminum
|
|
4
|
Max.finished board size
|
580*900mm
|
|
5
|
Min.drilled hole size
|
3mil(0.075mm)
|
|
6
|
Min.Line width&spacing
|
3mil(0.075mm)
|
|
7
|
Surface finish/treatment
|
HASL/HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating.
|
|
8
|
Copper Thickness
|
0.5oz-7oz
|
|
9
|
Solder Mask Color
|
Green/Yellow/Black/White/Red/Blue
|
|
10
|
Copper Thickness In Hole
|
>25.0 um(>1mil)
|
|
11
|
Inner packing/Outer packing
|
Vaccum Plastic bag/Standard carton packing
|
|
12
|
Hole/Shape tolerance
|
PTH: ±0.076 NPTH: ±0.05/±0.13
|
|
13
|
Cerification
|
UL.ISO9001.ISO14001.SGS.ROHS
|
|
14
|
Special requirements
|
Buried and blind vias+Controlled impedance+BGA
|
|
15
|
Profilling
|
Punching.Routing.V-CUT.Beveling
|
|
16
|
Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.
|
All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us.
2.Lead time
Samples:4 to 5 days
Mass produce:7 to 15 days depend on your PCB orders
3.Payment Terms
T/T, WESTUNIION Accepted
4.produce capacity
250000 Squre meter per year
Why us?
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom
product or a complex turnkey production run, will adhere to the highest quality standards.
--------------------------------------------------------------------------------
Capable
offers the latest in assembly capabilities and qualifications insuring that quality is built
into every product we produce.
--------------------------------------------------------------------------------
Experience
When it comes to your build you want a partner you can depend on. Our management team has over
10years of combined industry knowledge. Our engineering team has over 7 years experience.
--------------------------------------------------------------------------------
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working
under a strict confidentiality contract and treat your important documentation as they would their
own.
--------------------------------------------------------------------------------
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time
to listen to your unique business needs and then set out to surpass them.
