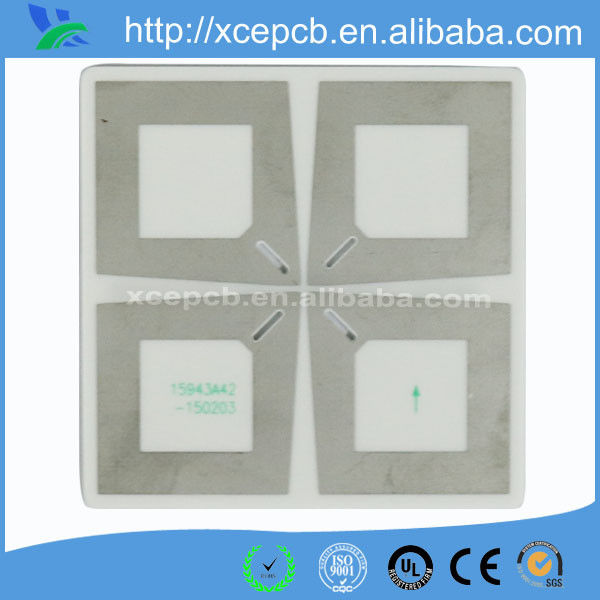

Product Description:
XCE PCB technical specifications |
Annual stock Material | Rogers,Taconic,Arton,Isola,F4B,TP-2.FR-4,High TG,Halogen free |
Layer No. | 1~16 |
Min board thickness | 2 layer0.2mm 4 layer0.4mm 6 layer 0.6mm 8 layer 0.8mm 10 layer 1.0mm |
Max panel size | 508*610mm |
Board thickness tolerance | T≥0.8mm±8%.,T<0.8mm±5% |
Wall hole copper thickness | >0.025mm(1mil) |
Finished hole | 0.2mm-6.3mm |
Min line width | 4mil/4mil(0.1/0.1mm) |
Min bonding pad space | 0.1mm(4mil) |
PTH aperture tolerance | ±0.075mm(3mil) |
NPTH aperture tolerance | ±0.05mm(2mil) |
Hole site deviation | ±0.05mm(2mil) |
Profile tolerance | ±0.10mm(4mil) |
Board bend&warp | ≤0.7% |
Insulation resistance | >1012Ωnormal |
Through-hole resistance | <300Ωnormal |
Electric strength | >1.3kv/mm |
Current breakdown | 10A |
Peel strength | 1.4N/mm |
Soldmask regidity | >6H |
Thermal stress | 288℃20Sec |
Testing voltage | 50-300V |
Min buried blind via | 0.2mm(8mil) |
Outer copper thickness | 1oz-5oz |
Inner cooper thickness | 1/2 oz-4oz |
Aspect ratio | 8:1 |
SMT min green oil width | 0.08mm |
Min green oil open window | 0.05mm |
Insulation layer thickless | 0.075mm-5mm |
Taphole aperture | 0.2mm-0.6mm |
Special technology | Indepedance,Blind buried via,thick gold,aluminum PCB |
Surface finish | HASL,Lead free HASL,Immersion Gold, Immersion Tin, Immersion Silver,OSP ,ENIG ,Golden finger,Blue glue,Gold plating |
Appilication:
a Telecom: transmitter. Receiver. Oscillator. Antenna.
b Satellite receiver
c Global location system, amplifier, satellite telecom
d Microwave transmission
e Automobile telephone
f Measure apparatus, LSI inspector, analyser, signal oscillator
g High frequency teletcom, high speed transmission, high security, high transmission quality, high memory transaction
Hot-Sale Poducts:
FAQ:
Q:Are you a manufacturer?
A:Yes.
Q:How about your delivery time?especially for sample?
A:Normally,it will take 3 to 10 days.to expedite quick samples within 24 hours is available and extra charges will be on your account for the service.
Q:What is your advantage?
A:Prompt delivery,high quality,sufficient stock base.
Q:What is your M.O.Q?
A: Our M.O.Q is 1pcs.
Q: Can you provide us best price?
A: As a manufacturer,we have strong capability to provide you costdown solutions and more competitive prices thanthe trading company.
Q: How do you ship the goods and how long does it take?
A: We dispatch the goods to our customers by DHL,UPS,FedEx or TNT express.usually,it takes 3-5 days to arrive.
Q: What file we should offer?
A: Making PCB should offer gerber file of the bare PCB board (protel ,power pcb,PADs file).
Q:Can we visit your factory?
A: We welcome you paying us a visit at any time.we look foward to your arrival and valuable instructions in the near future.
